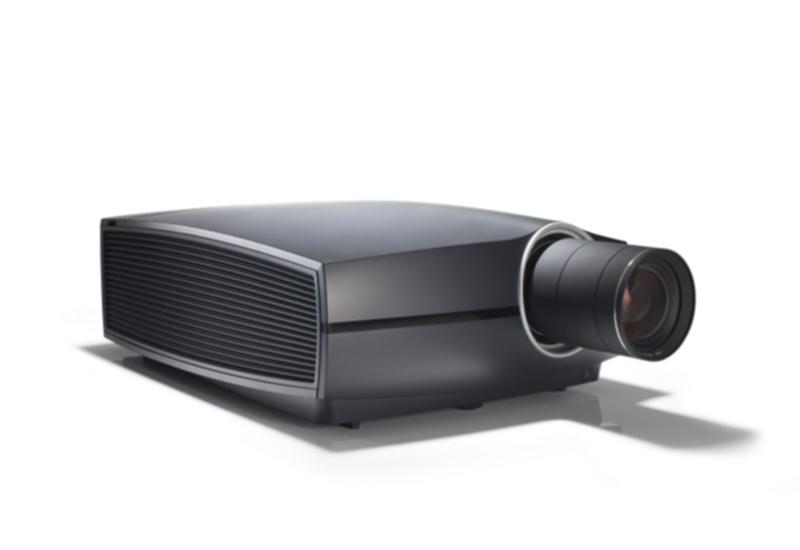

F80-4K7

7,000 lumens, 4K UHD, DLP laser phosphor projector
  • Stunning images with superb color performance
  • Ultimate installation flexibility, 24/7 operation
  • 3D capable
  • Silent operation

The stunning image quality and laser phosphor light source of Barco's F80 projectors enable you to provide exceptional experiences while saving both time and money. They're designed for fixed installation in a wide range of applications such as museums, board rooms, and auditoriums. Thanks to their 3D capability, they're also perfectly fit for theme park dark rides and interactive experiences.

Superior image quality

The F80-4K7 delivers stunning images with highly saturated colors that allow for accurate color reproduction at all times. What's more it features the powerful Barco Pulse processing that allows for sharper images and less latency thanks to its Single Step Processing (SSP).

Unprecedented business value

With this projector you can increase your uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides a long operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables

Ultimate installation flexibility

The F80-4K7 gives you more flexibility in projector location and orientation as it can run in any orientation.  Thanks to its wide array of all-glass lenses and wide lens shift ranges, the F80-4K7 accommodates almost any projector configuration.


More info...

Specifikációk

Projector type 4K single-chip DLP laser phosphor projector
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native)
Brightness 7,000 center lumen
Contrast ratio 1,200:1 sequential, 10,000:1 dynamic *
Brightness uniformity 95%
Aspect ratio 16:10
Lens type GLD / FLD+ (lens adapter needed)
Optical lens shift Up to 125% shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift
Color correction P7 RealColor™
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 40,000 hours, depending on mode of operation
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D * / Passive stereo compatible
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI 2.0*, RJ 45 Ethernet, DMX in/out*, RS232 in, 2x USB, 12V out
Input resolutions Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45, XLR wired
Network connection 10/100 Ethernet, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 700 W nominal, 850 W maximum
BTU per hour 2,400 BTU/h nominal, 2,900 BTU/h maximum
Standby power <0.5W
Noise level (typical at 25°C/77°F) 35 dB(A)
Operating temperature 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95°F) (up to 3000m altitude)
Storage - transport temperature -20 to 60 °C
Operating humidity 20 - 80% RH (non-condensed)
Storage humidity 20 - 90% RH (non-condensed)
Dimensions (WxLxH) 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in
Weight 25.5 kg / 56.2 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Warranty Limited 3 years parts and labor. Extendable up to 5 years
* SW upgradable. Please contact an authorized Barco representative for details.<\br> When used in long-life mode, available through SW upgrade.
