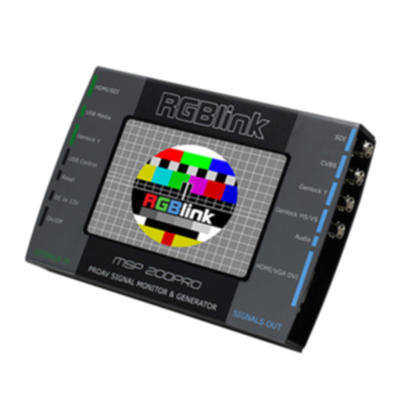

MSP200 pro

● Signal Genreator, Inline Preview Monitor, Media Player, Cross Convertor

● Touch Screen control

● Output a range of signals simulatneously

● Set and select from a range of common output formats

● Genlock Y Generator and Genlock Y & HS In/Loop

● Input live signals for preview and Inspection

● Play and use USB media  for custom test signals or as a Media Player source

● On Board Test Pattern Generator

● On board Time Code Generator

● Embedded Audio Test Sgnal Generator


The essential format and Test Pattern Generation, MSP200pro is so much more. MSP200pro has on board preview for external HDMI (and  optionally SDI), USB Media in for testing or as a simple media player source . There is wave form monitoring and video monitoring capabilities too. Popular test patterns can be easy selected with motion or without, and time code can be generated and displayed allowing inspection frame delay.

Outputs as standard are (up to) 3G-SDI, CVBS and DVI, with DVI supporting both HDMI and VGA signals also. Genlock is integrated too. MSP200pro is complete with convient ABS case, and may be fitted with Li-on batteries for even more portable use.

While MSP200pro is ideal  as a testing tools for the professional in the field, the wode range of unique features makes this every technicians must have tool.

Specifikációk

Connectors
Inputs
Standard:
1 x HDMI
1 x USB
1 x Genlock
Option Module:
1 x SDI
Outputs
Standard:
1 x SDI
1 x DVI
1 x CVBS
2 x Genlock
1 x Audio
Communication Ports
USB
2.0
Performance
Input Resolution
HDMI:
SMPTE: 625/25/50 PAL | 525/29.97/59.94 NTSC |720p50/59.94/60 | 1080i50/59.95/60 | 1080p50/59.94/60 | 1080psf
VESA:     800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1600x1200@60 | 1920x1080@60
SDI:
625/25/50 PAL | 525/29.97/59.94 NTSC |720p50/59.94/60 | 1080i50/59.95/60 | 1080p50/59.94/60 | 1080psf
Output Resolution
SMPTE:
487i@60 | 483P@60 | 576i@50 | 576P@50 | 720p@23.98/24/25/29.97/30/50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60
VESA:
640x480@60/75/85 |800x600@60/75/85 | 1024x768@60/75/85 | 1028x1024@60/75/85 | 1028x800@60 | 1360x768@60 | 1366x768@60 | 1400x1050@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1200@60 | 2048x1152@60 | 2560x812@60 | 2560x816@60
Standard Supported
SDI:
SD-SDI, HD-SDI, 3G-SDI
CVBS
PAL, NTSC
HDMI:
1.3
USB
2.0
VGA
VESA
DVI:
1.0
Power
External
Input Voltage
12DC (via Plug Pack)
Max Power
12W
Battery (Optional)
Type
Lithium Ion
Cell
18650
Quantity
2pcs
Voltage
3.7V
Capacity
1500Mah
Recharge Time
1 hr
Size
65mm (length) x 18mm (dia)
Environment
Temperature
 0℃~45℃
Humidity
10%~85%
Physical
Weight
0.83kg (Net Weight)
Dimensions
219mm x 148.5mm x 32mm (Device Dimension)
