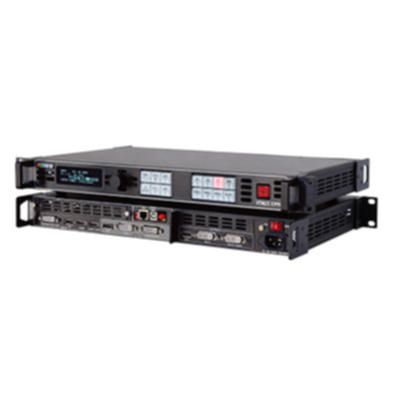

X1pro

Simply professional 4K scaling and switching

● 4K input support on DP, HDMI and DVI

● Input standard 2K formats

● Scale and switch seamlessly

between 2K and 4K inputs

● Output to any format 2K or 4K

● EDID management on board

● HDCP 2.0 compliant

● DisplayPort 1.1a with MST

● Custom output resolution

● Modular design

● Options for expandability

● Control your way either on board or with a range of

remote apps


Simply professional 4K scaling and switching.

4K switching has never been more practical and straight forward. The modular VENUS X1 platform allows the addition of a range of signal options over and above the standard inputs. Standard inputs include 4K signals on Dual Link DVI, HDMI and DisplayPort. Output to DisplayPort as 4K or scale and split across dual 2K DVI outputs. For those needing 4K distribution and splicing on four DVI, simply add the additional output module. The output module expands VENUS X1PRO to four 2K DVI outputs and adds a further DisplayPort output.

Alternately, VENUS X1PRO with the output module can be become a 4K presentation switcher with the additional DVI outputs (and DisplayPort) becoming a full preview. All the power and flexibility familiar with RGBlink X series

Specifikációk

Inputs
Standard:
1 × DVI/Dual-DVI
1 × VGA
1 × DisplayPort
1 × HDMI ( with loop)
Option Module:
3 x Slots
Choose from HDMI, DVI, VGA, CVBS, 3G-SDI, USB, Audio Management (3 slots)
Outputs
Standard:
1 × DisplayPort
2 × DVI
Option Module:
1 × Audio Module (when Audio Management module fitted)
1 ×  Output Expansion Module (1 × DisplayPort  and 2 × DVI per module)
Communication Ports
LAN
TCP/IP
USB
2.0
WIFI
Option module
Input Resolution
DVI
VESA:    800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200 | 2048x1152
HDMI
SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K 1K | 2160p
VESA:     800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080
               1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160
DP
SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K 1K | 2160p
VESA:     800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080
               1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160
SDI
480i | 576i |720p | 1080i | 1080p | 1080psf
VGA
800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200
Refresh Rates:
23.98/24/25/29.97/30/50/59.94/60Hz
Output Resolution
SMPTE
720p | 1080p
VESA
800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080
1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160
* Select user configurable
Supported Standards
SDI:
3G-SDI
VGA:
VGA-UXGA
HDMI:
  Standard Input: 1.4 | Optional Input: 1.3
DP:
1.1
DVI:
Single link, Dual link
Latency
2 frames
LED Controller
Pieces:
Two Integrated dual port Sender Cards
Compatible:
ColorLight S2,ColorLight iT7, Linsn TS801 and Linsn TS802, Nova MSD300, Nova MSD 600
Functions:
Display Connection, Brightness Adjustment (NOVA only), Color temperature and Gamma setting
Input Voltage
AC 100~264V, 50/60Hz
Max Power
65W
Temperature
 -25~55
Humidity
20%~90%
Weight
2.7kg (Net Weight)
6.3kg (Package Weight)
Dimensions
480mm x 303mm x 45mm (Device Dimension)
535mm x 355mm x 130mm (Package Dimension)
