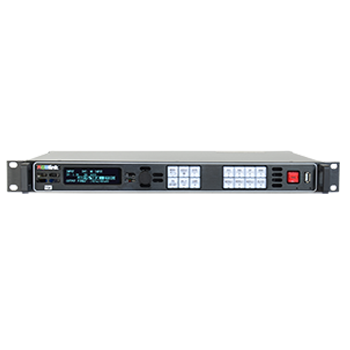

X1pro e

Available with 4K signal scaling and processing

● 1U frame style

● EDID management

● Independent scaling

● Matrix for input and output

● Seamless switching

● 8K1K or 4K2K pixel-to-pixel input


4K Switching & Scaling

When more than 2K is needed,X1 pro e enables 4K switching,scaling and signal distribution to 2k display devices.Ideal for connection to LED displays where multiple Sender Cards are used, X1pro e supports up tp 4K input signals with Dual Link DVI,HDMI and DisplayPort. Full 4K distribution is available,and with multi-mode operations other creative possibilities are available too,including Dual 2K(4k1k)output. Loop output connectors are provided as well enabling connections for redundant backups or multi-sync applications. X1pro e builds on the everyday X1 capabilities with straight forward 4K scaling and signal distribution that is fast and easy to use.

Specifikációk

Connectors
Input
Standard
1 × Single Link DVI with loop [HDMI not supported]
1 × Dual Link DVI (HDMI supported)
1 × DisplayPort with loop
Options
3 x Slots
Choose from HDMI, DVI, VGA, CVBS, 3G-SDI, USB, Audio Management (3 slots)
Output
Standard
4 × DVI
4 × DVI (backup/loop)
Communication
RS232

USB
Upgrade program with USB flash disk
Performance
Input resolution
DVI:
VESA: 800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200 | 2048x1152
HDMI:
SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K 1K | 2160p
VESA:    800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080
              1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160
DP:
SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K1K | 2160p
VESA:    800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080
              1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160
SDI:
480i | 576i |720p | 1080i | 1080p | 1080psf
VGA:
800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200
Refresh rate:
23.98/24/25/29.97/30/50/59.94/60Hz
Output resolution
SMPTE:
720p | 1080p
VESA:
800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080
1920x1200 | 2048x1152
* User defined resolutions are available.

Standard supported
SDI:
3G-SDI
VGA:
VGA-UXGA
HDMI:
Standard Input: 1.4 | Optional Input: 1.3
DisplayPort:
1.1
DVI:
 DVI-I, Dual Link
Power
Input voltage
AC 100~264V (typical value: 110/220); 50/60Hz

Max power
65W
Environment
Temperature
 -25~55 (typical value: 25)

Humidity
20%~90%RH
Physical
Weight
2.7kg (net weight)

6.3kg (package weight)

Dimensions
480mm x 303mm x 45mm (net dimension)

535mm x 355mm x 130mm (package dimension)
