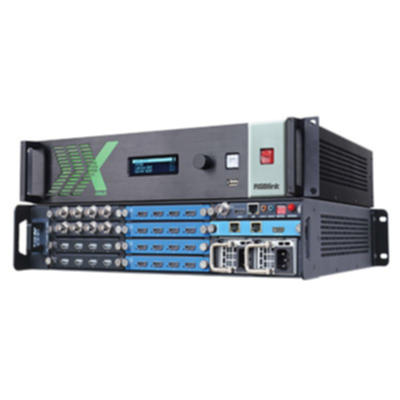

X2

16x16 video wall processor

● Up to 16x16 inputs/ouputs (4x4 slots)

● Wide range of user fit smart detect signal choices for input and output

● Auto input format detect and conversion

● EDID Management on board

● Genlock Y and Digital Reference built in

● Real-time resolution adaptation

● Isolated storage and frame rate conversion

● Rotation in 90°increments

● Color uniformity compensation technology

● DSK and Chroma Key features


X2 is a multiple output video processor, offering up to 16 outputs via four card-frame style slots. Output signal choices include HDMI, 3G-SDI and H.264. On the input side there are similarly four slots, supporting up to a total of 16 video inputs. Options for input include VGA, CVBS, USB Media, 3G-SDI as well as a multi-signal 4K in option.

X2 combines truly seamless, fade in fade out, glitch-free switching with advanced scaling technologies to meet the requirements of high quality, high resolution video applications, and with multi-mode operations built right in, X2 can equally be used as a video wall processor, a presentation processor or a dynamic router.

EDID management is built in enabling wide signal support, and faciliting any-signal cross-conversion for output.    Real-time resolution adaptation, color uniformity compensation technology are also on board.

From the front panel operation check status and set IP address, them connect remotely over a LAN to XPOSE for dynamic over-the-wire configuration of X2

X2 is a powerful yet economical solution, ideal for video wall applications, supporting multi-window, multi-layer video configurations across the output pixel space.

Specifikációk

Inputs
SmartSlots
4 (up to 16 inputs)
Signals Supported
HDMI | 3G-SDI | USB 2.0 Media | CVBS | VGA | YPbPr | H.264 | HDBaseT | 4K HDMI & DisplayPort
Outputs
Output SmartSlots
4 (up to 16 inputs)
Signals Supported
HDMI | 3G-SDI | H.264 | HDBaseT
Communications Ports
Multi-Device Link
uLink
Network
TCP/IP
Preview Module
Signals Supported
H.264 | HDMI

Features
Max Layers (videowall)
12+1
Max Layers (presentation)
6+1
Genlock In
HS & VS
Reference Input
HDMI 1.3
Performance
Input Resolution
SMPTE:
480i | 525@@29.97/59.94 NTSC | 576i | 625@25/50 PAL | 720p@50/59.94/60 | 1080p50/59.94/60 | 1080i@50/59.94/60 | 1080psf
VESA:
800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080 | 1920x1200 | 2048x1152
4K (1xHDMI-A 1.4 / 1xDisplayPort 1.2)
VESA: 3840x2160x24 | 3840x2160x25 | 3840x2160x30
Output Resolution
Select from standard set or select user configurable
SMPTE: 1080p | 720p | 1280x720 | 1920x1080
VESA: 800x600 - 2560x816
Refresh Rates: 23.98 | 24 | 25 | 29.97 | 30 | 50 | 59.94 | 60
Standards Supported
SDI:
SMPTE 425M (Level A) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
VGA: VGA-UXGA
DisplayPort: 1.0 | 1.2
DVI: 1.0
HDMI: 1.3 | 1.4
Mechanical
Temperature
Auto Control
Fans
Intelligent Switching
Electrical
Input Power
100V-240V 50/60Hz Auto-ranging
Max Power
200W
Environmental
Temperature
 0°C ~ 40°C
Humidity
10 - 85% RH
Physical
Dimensions
Device: 484mm x 413mm x 91mm
Packed: 585mm x 405mm x 195mm
Weight
Device: 12kg
Packed: 16.5kg
