VIDEÓKONFERENCIA-ÉS LIVE STREAMING MEGOLDÁSOK:  PTZ kamerák és audió rendszerek  tárgyalókba, vezeték-nélküli BARCO ClickShare Conference, BARCO weConnect online és hybrid REAL-TIME digitális távoktatás, lecture capture és streaming eszközök, LEDFALAK bérbeadása
CLEARONE kollaborációs kamera videókonferenciához


ClearOne UNITE kamera termékcsaládot, az UNITE 20 Pro WEBCAM, UNITE 50,4k ePTZ   HD kamera , az UNITE 150 PTZ és UNITE 200 PTZ kamerák alkotják. A négyféle kamera lefedi a BYOD videokonferencia  általános igényeit.

BARCO Clickshare Conference-et bármelyik  UNITE kamerával és a ClearOne Collaborate VERSAhangrendszer elemeivel együtt lehet használni. A BARCO Clickshare Conference megteremti a vezeték-nélküli videókonferencia lehetőségét és tartalommegosztást.

Specifikációk

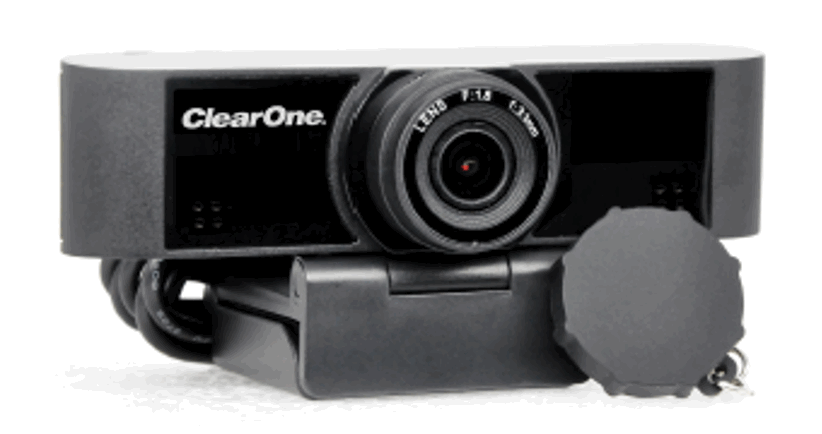

A Unite 20 Pro WEBCAM paraméterei:


 1080P Full HD
- Sensor: 1/2.7’’, CMOS, Effective Pixel: 2.07M
- Scanning Mode: Progressive
- Lens: Focus: f=2.8mm, FOV: 120°
- Minimal Illumination: 0.05 Lux @ (F1.8, AGC ON)
- Shutter: 1/30s – 1/10000s
- White Balance: Auto, Indoor, Outdoor, One Push, Manual
- Backlight Compensation: Supported
- Digital Noise Reduction: 2D & 3D Digital Noise Reduction
- Horizontal Angle of View: Wide angle up to 120°
- Easy Installation: Equipped with damped rotary shaft bracket to fit almost any display, easy to install, stable and reliable.


Input/Output Interface

  • - USB Interface: 1xUSB 2.0: Type A


Unite 50 4k ePTZ kamera:


Video System

•4K: down-compatible with 1080p30 and 720p •Sensor: 1/2.5’’, CMOS, Effective Pixel: 8.29M •Scanning Mode: Progressive
•Lens: Focus: f=2.8mm, FOV: 120°

•Minimal Illumination: 0.05 Lux @ (F1.8, AGC ON) •Shutter: 1/30s – 1/10000s
•White Balance: Auto, Indoor, Outdoor, One Push,

Manual
•Backlight Compensation: Supported
•Digital Noise Reduction: 2D & 3D Digital Noise

Reduction
•Horizontal Angle of View: Wide angle up to 120° •Electronic Pan Tilt Zoom
•Easy Installation: Equipped with damping rotary shaft

bracket to fit almost any display, easy to install, stable and reliable.

USB 3.0 Type B

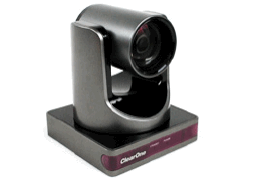

UNITE® 150 PTZ HD kamera:


•Video System: •HD: 1080p30 • 1080p25
• 720p30

• 720p25
•Sensor: 1/2.7 inch, CMOS
•Effective Pixel: 2.07M
•Scanning Mode: Progressive
•Lens: 12x, f3.5mm – 42.3mm, F1.8 – F2.8 •Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON) •Shutter: 1/30s – 1/10000s
•White Balance: Auto, Indoor, Outdoor, One Push,

Manual
•Backlight Compensation: Supported
•Digital Noise Reduction: 2D & 3D Digital Noise

Reduction
•Video S/N: ≥55dB
•Horizontal Angle of View: 72.5° – 6.9°
•Vertical Angle of View: 44.8° – 3.9°
•Horizontal Rotation Range: ±170°
•Vertical Rotation Range: -30° – +90°
•Pan Speed Range: 1.7° – 100°/s
•Tilt Speed Range: 1.7° – 69.9°/s
•H & V Flip: Supported
•Image Freezing: Supported
•Number of Presets: 255
•Flexible Installation: Standard mount, upside-down mount

USB 3.0


Unite 200 PTZ:


CAMERA:

•Video System: •HD: 1080p60 • 1080p50
• 71080i60

• 1080i50 • 1080p30 • 1080p25 • 720p60 • 720p50 • 720p30 • 720p25

SENSOR:

•1/2.7 inch, CMOS
•Effective Pixel: 2.07M
•Scanning Mode: Progressive
•Lens : 12x, f3.5MM – 42.3MM, f1.8 – f2.8
•Minimal Illumination : 0.05 l ux @ (f1.8, Agc On) •Shutter : 1/30S – 1/10000S
•White Balance : Auto , Indoor, Outdoor, One Push,

Manual
•Backlight Compensation : Supported
•Digital Noise reduction : 2D & 3D digital noise

reduction
•Video S/N : ≥55dB
•Horizontal angle of view : 72.5° – 6.9°
•Vertical angle of view : 44.8° – 3.9°
•Horizontal rotation range : ±170°
•Vertical rotation range : -30° – +90°
•Pan Speed range : 1.7° – 100°/S
•TILT SPEED range : 1.7° – 69.9°/S
•H & V FLIP : Supported
•Image Freezing : Supported
•Number of Presets : 255
•Flexible Installation : Stand Mount, upside-down

mount

INPUT/OUTPUT INTERfACE

•HD Output : 1 x HDMI: Version 1.3
•Network Interface : 1 x RJ45: 10M/100M/1000M

Adaptive Ethernet Port
•Audio Input : 1-CH 3.5MM Audio Interface , Line In

•USB : 1 x USB3.0: type B Female jack 1 x USB2.0: type a Female jack (reserved interface)

•Communication : 1 x Rs-232 in : 8-Pin Min din, Max distance: 30M, Protocol: viscA/Pelco -d/PElcO -P 1 x RS-232 Out : 8-Pin Min din, Max distance: 30M, Protocols: visca network use Only 1 x RS485: Share with RS232 Out, Max distance: 1200M, Protocol

USB FEATURES

• Operating Systems: Windows 7, Windows 8, Windows 8.1, Windows 10, MacOS, Linux

  • Color System: YUV 4:2:2

  • Video Formats:

    • USB3.0:
    • 1080p30

    • 1080p25 • 720p30 • 720p2

    • USB Video Communication : UVC 1. • UVC PTZ : Supported

•Dimension : 240MM x 144MM x 160MM •Weight : 1.65 kgs
