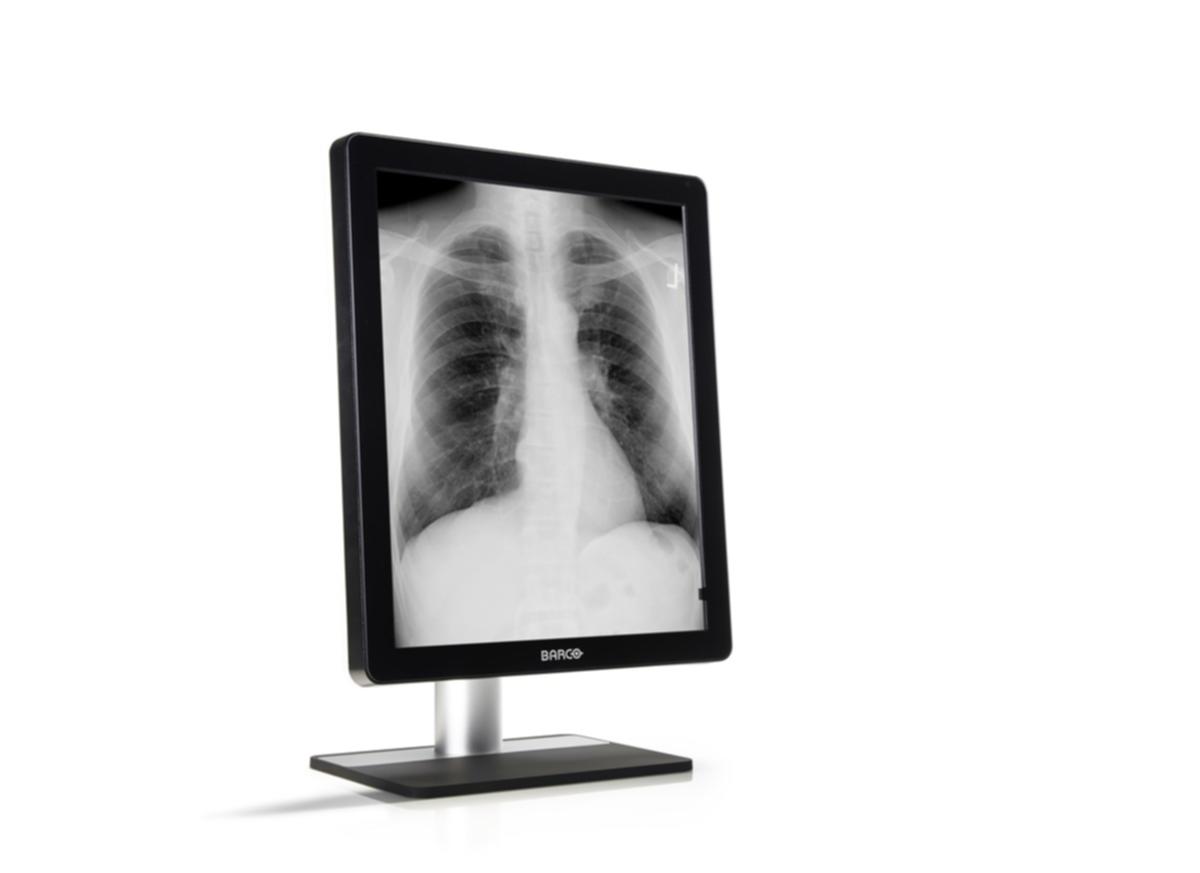

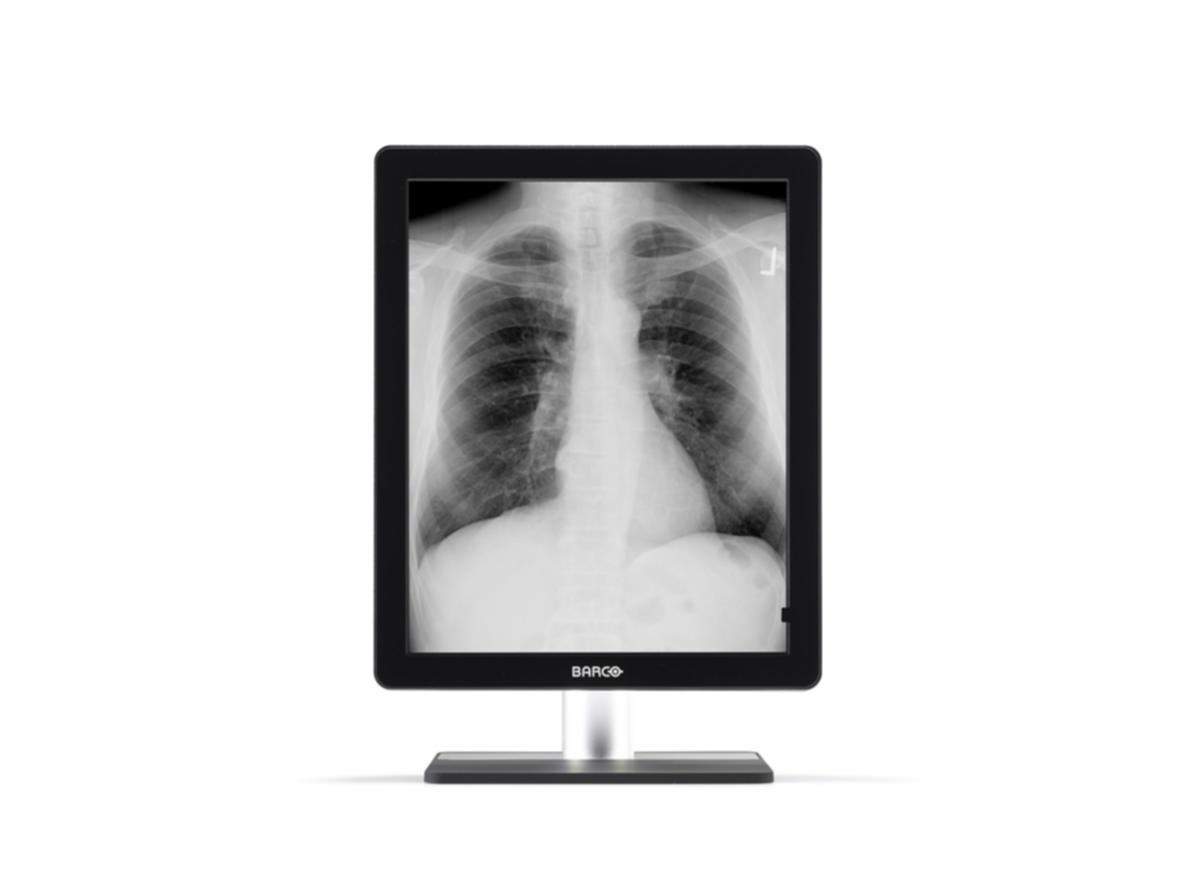

Coronis 5MP LED (MDCG-5221)

5MP premium diagnostic grayscale display system
  • Grayscale medical display with 2560 x 2048 resolution
  • Barco LED technology to unveil the subtlest details
  • Intelligent Multi-Sensor Technology for incredible images
  • Cleared for mammography

Equipped with high-bright LED backlights, Barco's Coronis 5MP LED renders more JNDs (Just Noticeable Differences) to help you see more shades of gray. Additionally, Per Pixel Uniformity ensures every pixel is DICOM-compliant at all times, which increases contrast to noise ratio. Subtle details become more noticeable more quickly, resulting in reduced windowing and leveling time.

Unrivaled brightness

Coronis 5MP LED offers a high calibrated luminance – 600 cd/m² – to increase detection of the smallest details. Additionally, with the 'hot light' I-Luminate button you can temporarily boost the display brightness, allowing inspection of subtle details or comparison of digital exams with film-based priors.

Worry-free DICOM compliance

Barco's Coronis 5MP LED is bundled with MediCal QAWeb for automated calibration and QA, ensuring continuous diagnostic quality and maximum uptime of your workstation. MediCal QAWeb allows you to continue working while automated QA checks are being executed and enables remote, centralized image quality management.

High return on investment

Barco's LED backlights are as low in power consumption as they are high in brightness. They are mercury-free, produce less heat, and last longer, providing a high return on your investment. The cool-running display electronics produce bright light more efficiently, requiring less cooling and reducing the overall operational costs for the hospital.


Standard 5-year warrantyAnti-reflective protectivefront glassUsable in portrait andlandscape modeGrayscale display10 bit Look Up TableMediCal QA softwareincludedIntegrated front-of-screen sensorIntegrated Ambient Light CompensationLong-lifetime backlightsPer Pixel Uniformity correctionLong lifetime LED technology21-inch screen diagonal5 MegaPixel resolution (2,048 x 2,560 or 2,096 x 2,800)


Features

  • Per Pixel Uniformity™: PPU measures and adjusts the luminance of each pixel, making every pixel permanently DICOM compliant.
  • I-Luminate™: a push on the 'hot light' I-Luminate button will temporarily boost display brightness, allowing inspection of subtle details or comparison of digital exams with film-based priors.
  • I-Guard™: the integrated I-Guard sensor continually guards and adjusts the luminance output of the display, ensuring continuous compliance with the DICOM standard.
  • QAWeb: the innovative MediCal QAWeb system is an easy-to-use, web-based tool for automated calibration and Quality Assurance.
  • Adjustable dual-head stand: the dual-head stand allows users to angle the displays to fit their preferred position for optimum viewing.
  • 5-year warranty: Coronis 5MP LED is covered by a standard 5-year warranty.

Specifikációk

Screen technology a-si TFT active matrix dual domain IPS
Active screen size (diagonal) 540 mm (21.3”)
Active screen size (H x V) 422.4 mm x 337.9 mm (16.5 x 13.3“)
Aspect ratio (H:V) 5:4
Resolution 5MP (2560 x 2048)
Pixel pitch 0.1650 mm
Color imaging No
Gray imaging Yes
Number of grayscales (LUT in/LUT out) 1024 gray levels (10/12)
Viewing angle (H, V) 170°
Per Pixel Uniformity (PPU) Yes
Ambient Light Compensation (ALC) Yes
Backlight Output Stabilization (BLOS) Yes
I-Guard Yes
Maximum luminance 1200 cd/m² typical
DICOM calibrated luminance 600 cd/m²
Contrast ratio 1200:1 typical
Response time (Tr + Tf) 25 ms typical
Video input signals DVI-D Dual Link / DisplayPort
USB ports 1 upstream, 2 downstream
USB standard 2.0
Power consumption (nominal) 46W
Power save mode Yes
Dimensions with stand (W x H x D) Portrait: 407 x 523~623 x 235 mm
Landscape: 493.5 x 479~579 x 235 mm
Dimensions w/o stand (W x H x D) 407 x 493.5 x 84 mm
Net weight with stand 13.6 kg
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE - 2014/30/EU, CE - 93/42/EEC; A1:2007/47/EC class II b, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012,ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Supplied accessories User Guide
Quick-Installation Sheet
Video cables (1 x DVI Dual Link + 1 x DisplayPort)
Main cables (UK, European (CEBEC/KEMA), USA (UL/ CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
Optional accessories None
QA software MediCal QAWeb
Warranty 5 years
