Nureva HDL 200

  A Nureva HDL-200 a kisebb , max. 5,5 x 5,5 méter méretű termek, szobák, konferencia helyiségek audió-és videókonferencia igényeit szolgálja ki. A termék úgy néz ki, mint egy All-In-One videobar, amelybe a kamera, mikrofonok és hangszórók foglalnak helyet, azzal a különbséggel, hogy ebben a kamera nincs benne, opcionálisan konfigurálható igény szerint, viszont a mikrofon rendszere teljesen különbözik minden más gyártóétól, mert 4096  "virtuális" mikrofon érzékeli a hangot, a szabadalom által védett MIST technológiának köszönhetően.  A felosztott térből jövő hangforrásosokat egy hihetetlen gyors ( 15 000 Mips) fPGA alapú jelfeldolgozó segíti , biztosítva  ezzel azt, hogy a terem bármelyik részén, egy mozgó ember hangja egyenletes, jó minőséggel legyen hallható a távoli résztvevők számára.



Nureva® HDL200:


audio conferencing system

Ideal for small spaces

Trust the HDL200 system to deliver the best audio performance in your small meeting rooms. Seated, standing or walking around – no restrictions means your team can work the way that best suits them and their tasks while still being heard by remote participants. It installs in less than an hour in a variety of flexible configurations, for a clean uncluttered aesthetic. And its plug-and-play connectivity and continuous autocalibration ensure that setup is simple.

Thousands of virtual microphones

At the heart of the HDL200 audio conferencing system is Nureva’s revolutionary Microphone MistTM technology. It surpasses traditional audio conferencing technologies by filling a space with thousands of virtual microphones to provide true full-room pickup. For the first time, meeting participants can be heard no matter where they move in the room or which direction they face.

One simple solution

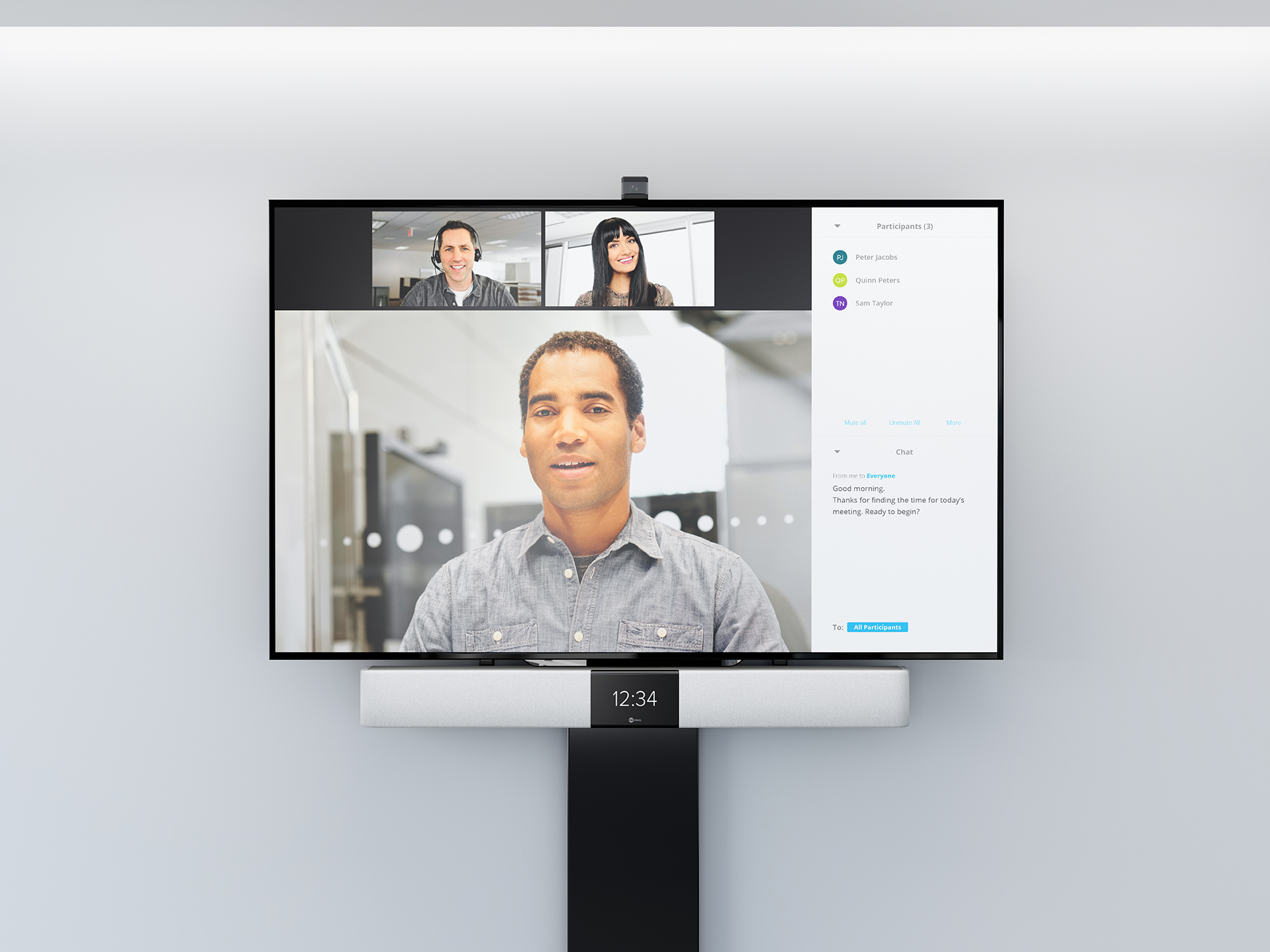

The HDL200 system was designed for simplicity. You can install it yourself in less than an hour. Plug-and-play connectivity to virtually all UC&C platforms means there are no drivers to install and the system autocalibrates, so no technician is needed for set up. The HDL200 can be installed in a variety of configurations, including on the wall (above or below a display) or even mounted to a mobile display stand.

Intelligent sound targeting – eliminating unwanted sounds

HVAC and other unwanted sounds can seriously affect conference call audio. Using adaptive learning algorithms, intelligent sound targeting identifies unwanted sounds and simply stops picking them up.

Designed for smaller spaces today and tomorrow

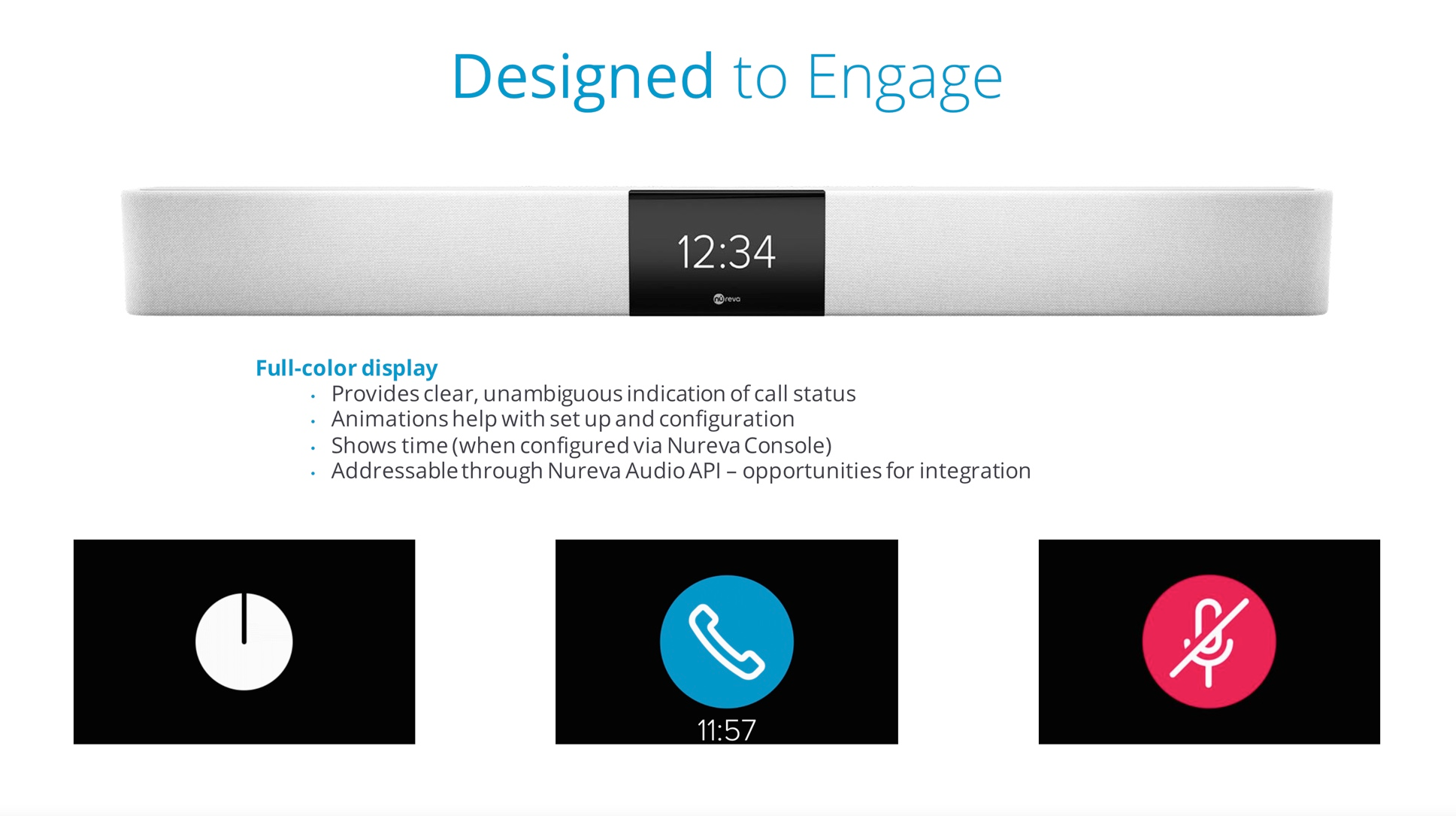

The HDL200 includes an integrated full-color display. Perfectly sized for smaller rooms, it displays useful information such as time, call status, volume, mute on/off, etc., to help keep conferences on track. With the introduction of the Nureva audio API, the display will support further enhancements through future integrations with other products such as room control, building information management and room booking systems.

Easily manage and deploy multiple systems across the organization

Whether you are installing one system or hundreds, all HDL200 systems come with Nureva Console, a cloud-based platform that makes it easy to manage systems across multiple locations from a single, secure dashboard. Once enrolled, customers also receive an additional year of warranty, from two years to three, at no additional cost.


Designed for small spaces

Up to 18' by 18' (5.5 x 5.5 m)

4,096 virtual microphones

They fill the space providing full-room coverage

Advanced system processing

Simultaneously processes all 4,096 virtual microphones

Compatible with UC&C platforms

Zoom, Microsoft® Teams, Skype® for Business, GoToMeeting®, Cisco Webex®, StarLeaf and more

Continuous autocalibration

Adapts to room configurations dynamically

Plug and play

Recognized as a standard USB device. No drivers needed.

Advanced audio

Acoustic echo cancellation, position-based gain control

Flexible installation

Above or below a display, on a wall (bracket included) or on a mobile stand (bracket optional)

Nureva Console

Manage products from anywhere. Automatic firmware updates. Additional year of warranty upon enrollment.

Integrated display

Full-color display for call status

Specifikációk

SPECIFICATIONS:

Nureva HDL200 system

GENERAL:

Powerful system processors (15,000 MIPS) Continuous autocalibration
Acoustic echo cancellation Position-based gain control

Intelligent sound targeting
Plug and play, no software or drivers required Integrated full-color display
Compatible with leading UC&C platforms

SYSTEM INCLUDES:

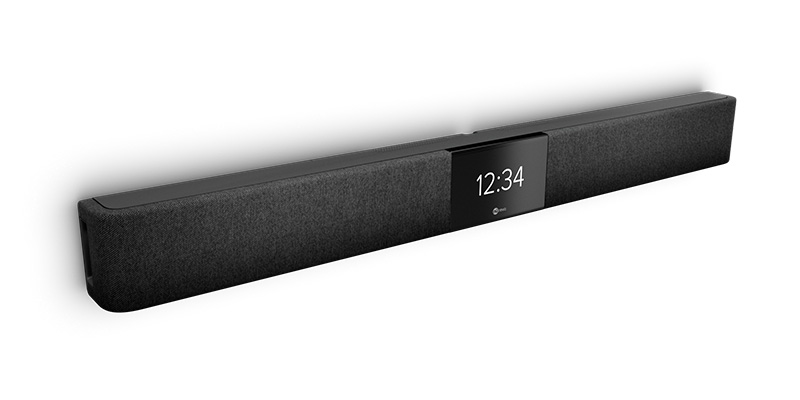

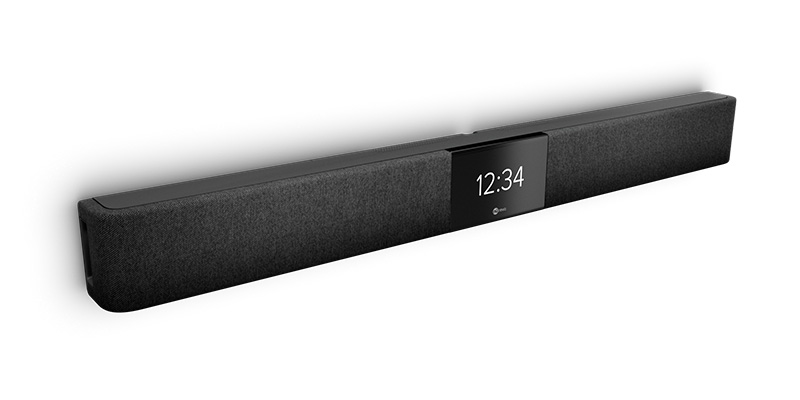

Integrated microphone and speaker bar
Wall mounting bracket
Power supply with country-specific power cable 6' (2.5 m), black USB type A-B cable, 10' (3 m) VW-1 rated, black
Infrared remote
Cable routing channel
AAA batteries x2
Documentation kit

MICROPHONES:

Number

10

Type

Omnidirectional MEMS microphones

Frequency response

100Hz – 5 kHz

Total harmonic distortion (THD) at 94dBSPL

0.25% (typical)

POWER

Power rating

Universal switching 100-240V AC, 50-60Hz

Power consumption

<25W

ENVIRONMENTAL:

System temperature

0° C to 40° C (32° F to 104° F) operating temperature, -20° C to 70° C (-4° F to 158° F) storage temperature, humidity 5–90%
SPEAKERS:

Number

Power rated capable 20W x2

Type

Type 3.25" high-fidelity full range

Acoustic output (hardware capable)

91 dB-SPL @ 1 m

Frequency response

125-20,000Hz

Amplifier class

D

WEIGHTS

Integrated microphone and speaker bar

10.0 lb. (4.5 kg)

Shipping

17.0 lb. (7.7 kg)

DIMENSIONS

Integrated microphone and speaker bar

Width: 46.4" (117.9 cm) Height: 4.8" (12.2 cm) Depth: 3.6" (9.1 cm)

Shipping

Width: 48" (121.9 cm) Height: 10" (25.4 cm) Depth: 5.6" (14.2 cm)

CONNECTIONS:

Interface to computer

Single USB 2.0, type B

Power

Input jack for power supply

CERTIFICATIONS

Electromagnetic compatibility

FCC Part 15, Class A ICES-003, Class A, CISPR 32 (EN55032), Class A CISPR 24 (EN55024), CISPR 35 (EN55035)

Safety

UL 62368, CAN/CSA-C22.2 NO. 62368, IEC/EN62368, AS/NZS 62368

Environmental

RoHS, WEEE, REACH

OPERATING

Room size

Up to 18' x 18' (5.5 x 5.5 m)

Operating systems

Windows® 7, Windows 8, Windows 10, Mac® OS X® 10.14 and 10.15 (Mojave and Catalina)

System setup

Plug and play

PART NUMBERS

HDL200-B, HDL200 audio conferencing system, dark bar HDL200-W, HDL200 audio conferencing system, light bar

OPTIONAL ACCESSORIES

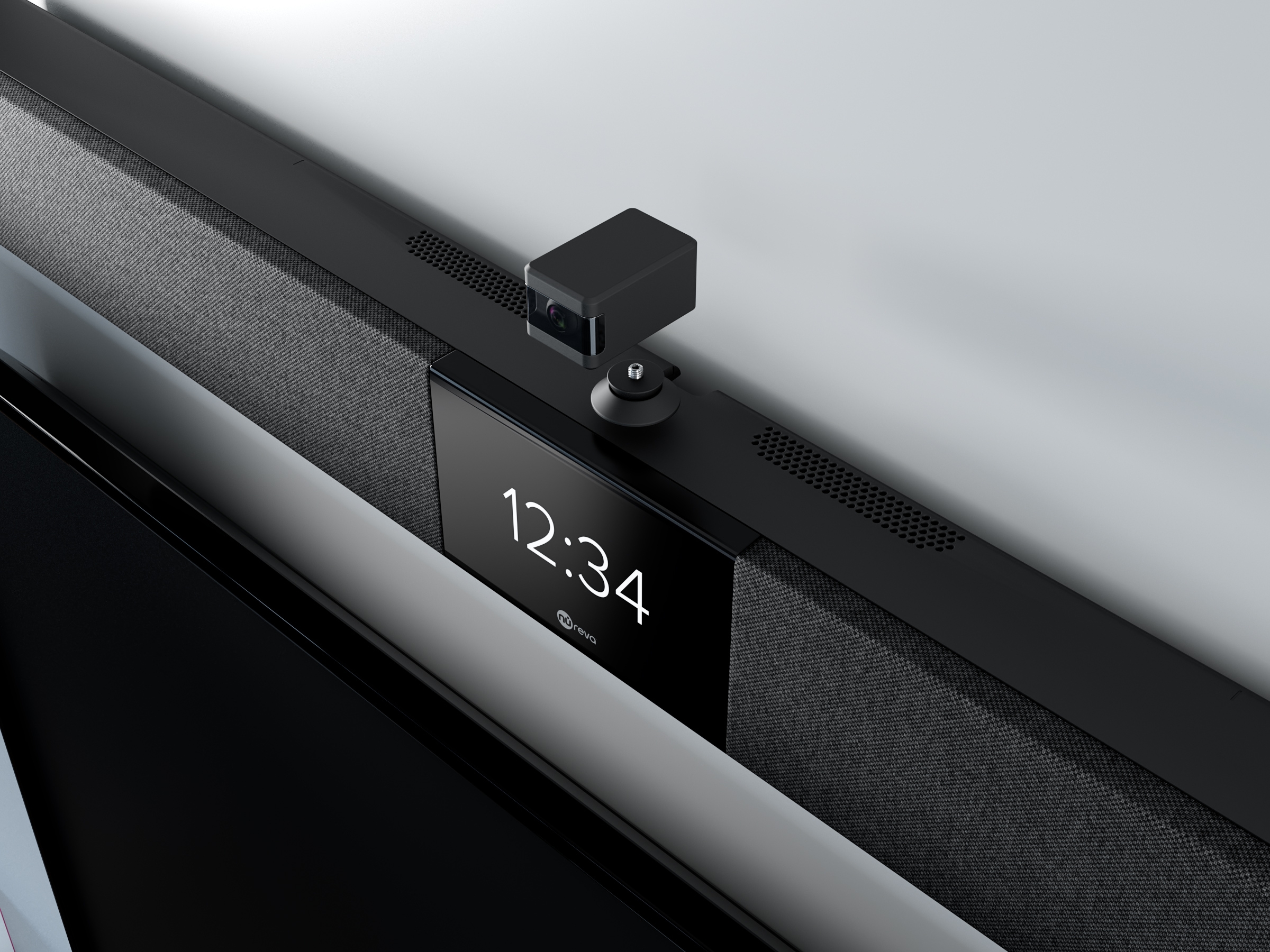

CM-HDL200, camera mount HDL200 DM-HDL200, display mount HDL200
